CBCT: A Three-Dimensional Look at Endodontic Diagnosis

Using technology to bring diagnosis and treatment planning to the next level

Rebekah Lucier Pryles, DMD

The dental history, clinical examination, and two-dimensional (2D) radiography provide the foundation for endodontic diagnostics. In many instances, the data obtained from these sources provide sufficient information to both diagnose pathology and establish appropriate treatment options. Despite a thorough workup, however, clinical situations occasionally arise in which additional diagnostic information is necessary to determine the type or extent of pathology or to rule out unsuitable treatment choices.

Diagnosis in Three Dimensions

Cone beam CT (CBCT) imaging, in many cases, offers information necessary to solve the diagnostic puzzle and establish suitable treatment possibilities. Historically, practitioners were encouraged to obtain several angled radiographs when diagnostic difficulties were encountered.1 Small field-of-view CBCT technology largely obviates this need by providing an accurate, three-dimensional representation of endodontic pathology at a radiation dose comparable to several radiographs.2 In endodontics, situations in which three-dimensional (3D) data may aid the diagnostic process include challenging diagnoses, assessment of traumatic dental injuries, fracture evaluation, examination of resorptive defects, and assessment of recurrent pathology in previously endodontically treated teeth.

The diagnosis of endodontic pathology involves the accurate reproduction of the chief complaint by clinical testing and support of the clinical diagnosis by radiographic data. Unfortunately, situations may arise in which these examinations do not provide sufficient diagnostic information. Clinical testing may prove inaccurate, particularly in heavily restored patients or in those with severe intrapulpal calcifications. Furthermore, 2D radiography may not accurately visualize bony defects. Following an inconclusive clinical exam or normal-appearing periapical radiograph despite patient pain complaints, 3D radiographic data obtained from CBCT imaging may provide essential diagnostic information. Periapical radiographs are limited by structural overlap, often termed “anatomic noise.”3 The projection of overlying anatomy, including the maxillary sinus walls, zygomatic arches, and thick mandibular cortical bone, often obscures periapical lesions confined to cancellous bone, causing clinicians to overlook existing pathology. CBCTs remove the influence of anatomic noise, allowing clinicians to detect pathology not visualized by periapical radiographs. One study found that CBCTs are able to detect 34% more apical pathology than periapical radiographs alone.4 Appropriate use of CBCT technology in difficult diagnostic cases can eliminate confusion and obviate the need for diagnostic follow up exams.

Assessing Trauma

The assessment of traumatic orofacial injuries may also benefit from CBCT data. Though traumatic dental injuries often present with obvious signs of orofacial damage, intra-bony oblique fractures are often difficult to visualize and may exist concomitantly with other injuries. The ability to rule out additional pathology and establish reasonable treatment expectations for patients and parents justifies the use of this technology in many trauma cases. The American Association of Endodontists guidelines for the diagnosis and treatment of traumatic dental injuries provide a detailed framework for the evaluation and treatment of traumatized patients. They recommend obtaining CBCT data in cases of crown-root fractures; root fractures; alveolar fractures; concussions; subluxations; extrusive, lateral, and intrusive luxations; and avulsions.5 The additional information garnered from CBCT imaging can determine the extent and direction of dental and alveolar fractures, degree of periodontal ligament damage, and presence of other injuries. The additional information can shape appropriate treatment and offer more comprehensive prognostic expectations.

Visualizing Root Fractures

Just as CBCT imaging can assist in the diagnosis of traumatic dental fractures, it can also prove useful for the diagnosis of non-traumatic root fractures. As root fractures necessitate extraction, accurate diagnosis of their presence or absence is essential to prevent both the maintenance of hopeless teeth and the extraction of healthy teeth. Though a clinical examination revealing isolated deep probing depths, coronal sinus tracts, or evidence of coronal craze lines may suggest that a fracture is present, periapical radiographs rarely visualize fractures.

CBCT imaging can, in some cases, capture root fractures in the scan volume. A recent study found CBCTs can depict root fractures, particularly those with greater than 50 micrometers of separation.6 In cases where the fracture is not visible on the scan, other diagnostic information can be gained to support the fracture diagnosis. Findings associated with root fracture include loss of bone mid-root, absence of the entire buccal plate, a mid-root radiolucency in the area of post termination, and space between the buccal or lingual plate and the root surface.7 Taken together with the clinical data, the additional diagnostic data obtained from the CBCT scan provide clinicians more confidence in the diagnosis of root fractures.

Examining Resorptive Defects

CBCT imaging is exceptionally useful to both diagnose resorption and plan for its treatment. Although periapical radiographs alone often depict resorptive defects, little information is garnered about their extent, including the presence or absence of perforations. Furthermore, periapical radiographs may not differentiate between internal resorption, external resorption, or invasive cervical root resorption. Historically, clinicians often took multiple angles of radiographs to discern the location and extent of the defect. The lack of dimensionally accurate information, however, often led to the performance of exploratory root canal therapy, a time-consuming and expensive procedure. CBCT technology can largely eliminate the need for exploratory treatment by providing accurate three dimensional representations of resorptive defects including the type of resorption present and the possibility of perforation.8 Preoperative information can prevent exploratory treatment and can better direct clinical resources toward saving teeth with a reasonable expectation of a favorable outcome.

Diagnosing Recurrent Pathology

The assessment of recurrent apical pathology in previously endodontically treated teeth can also benefit from CBCT data. Retreatment outcomes are most favorable when the cause of treatment failure is identified and corrected.9 In many cases, failure reasons may be obvious based on clinical or radiographic data. For instance, the clinical exam may reveal recurrent caries under the coronal restoration, or the periapical radiograph might visualize an exceptionally short fill. In cases where both the restorative and endodontic treatment appears sufficient despite the presence of radiographic pathology, a CBCT scan can often visualize the presence or absence of untreated anatomy. This information gives confidence to both clinicians and patients when deciding whether or not to pursue retreatment.

Conclusion

While CBCT imaging provides useful diagnostic data in many instances, it may not be appropriate in all clinical settings. Clinicians must consider the need for imaging on a case-by-case basis to avoid exposing patients to unnecessary radiation.10 When used appropriately, from difficult diagnostic cases to retreatments, CBCT imaging provides clinicians with the necessary information to bridge the diagnostic gap.



About the Author

Rebekah Lucier Pryles, DMD
Assistant Clinical Professor of Endodontics,
Tufts University School of Dental Medicine
Private Practice
White River Junction, Vermont

Endodontics Showcase

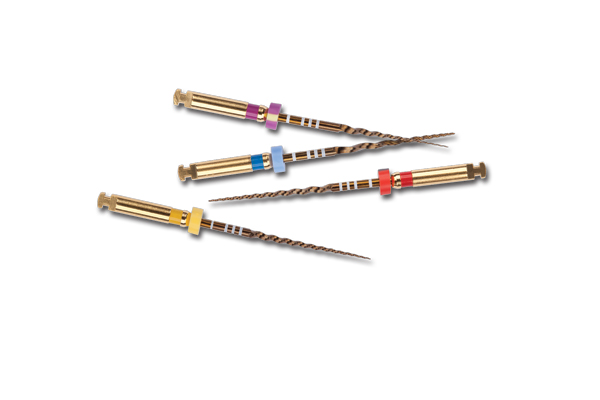

Figure 1 | ProTaper Gold® Rotary Files

ProTaper Gold from DENTSPLY Tulsa Dental Specialties features the same simplicity and smoothly tapered shapes of ProTaper Universal. Developed with proprietary advanced metallurgy, ProTaper Gold rotary files deliver greater flexibility for predictable performance.
800-662-1202
tulsadentalspecialties.com

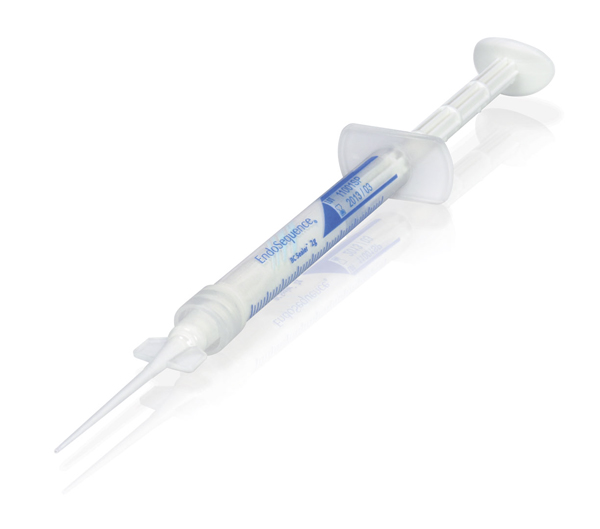

Figure 2 | EndoSequence® BC Sealer

EndoSequence BC Sealer from Brassleler features an extremely small particle size and ideal viscosity that allows it to readily flow into lateral canals, webs, and dentinal tubules. Antibacterial during setting and highly radiopaque, it has zero shrinkage, ensuring an outstanding seal.
800-841-4522
brasselerusadental.com

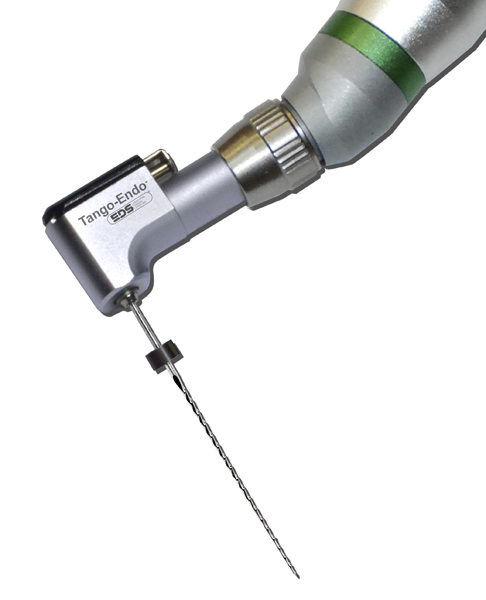

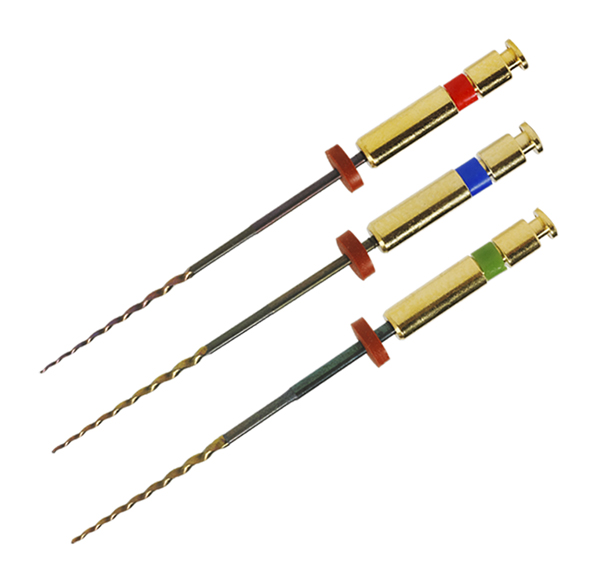

Figure 3 | Tango-Endo™ Instrumentation System

Tough and reusable Tango-Endo instruments from EDS Dental comprise a timesaving two instrument shaping system. They allow for faster engagement with less resistance, increased flexibility without sacrificing strength, and virtually eliminated instrument separation.
800-22-FLEXI
edsdental.com

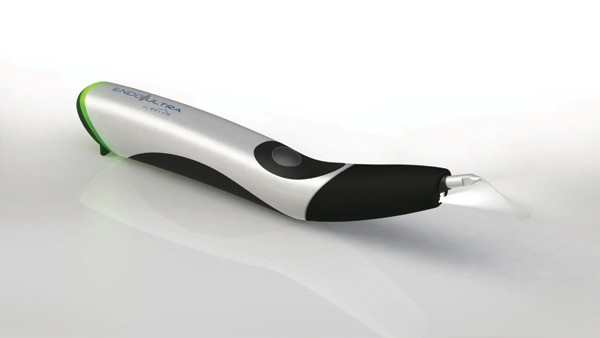

Figure 4 | EndoUltra

The world’s first cordless ultrasonic endodontic activation device, EndoUltra from Vista Dental Products improves irrigant penetration. EndoUltra generates significant tip velocity to create the streaming and cavitation required for optimal cleanliness, penetration, canal sealing, and vapor lock removal.
877-418-4782
vista-dental.com

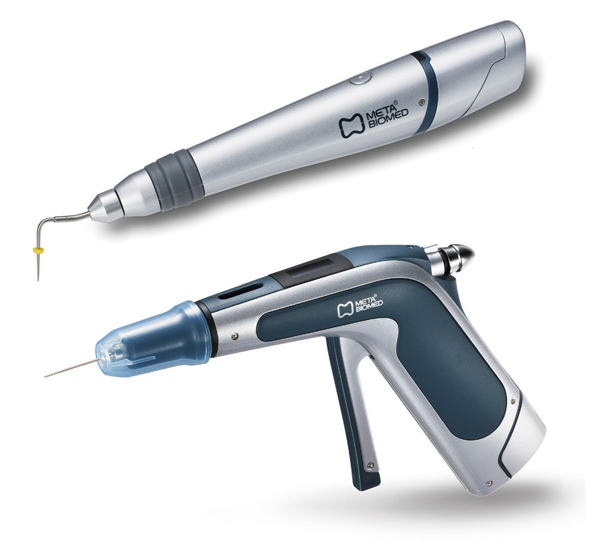

Figure 5 | E&Q Master

Meta Biomed’s E&Q Master is a sophisticated cordless gutta percha obturator. The rechargeable battery-operated E&Q Master Gun heats within minutes for a smooth insertion and backfill. The Master Pen can be used for downpacking or cutting of gutta percha.
267-282-5893
meta-biomed.com

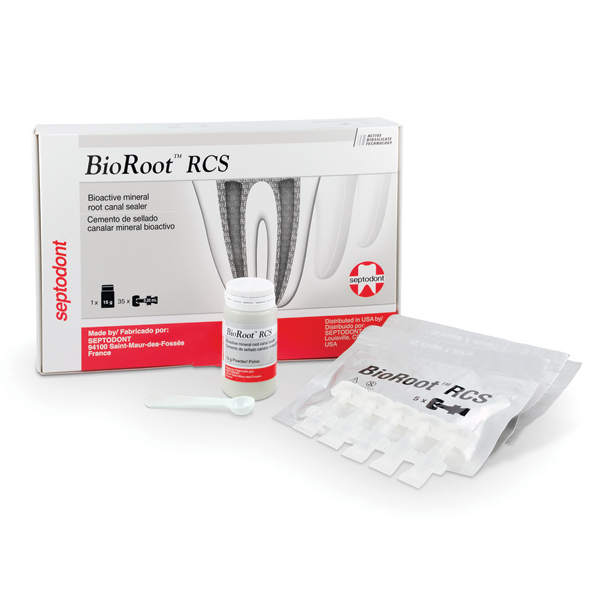

Figure 6 | BioRoot™ RCS

BioRoot RCS is a bioactive and biocompatible mineral-based root canal sealer indicated for permanent canal obturation. This resin-free material’s user-friendly obturation technique ensures a strong, void-free seal with a tight interface that securely adheres to dentin and gutta percha points.
800-872-8305
septodontusa.com

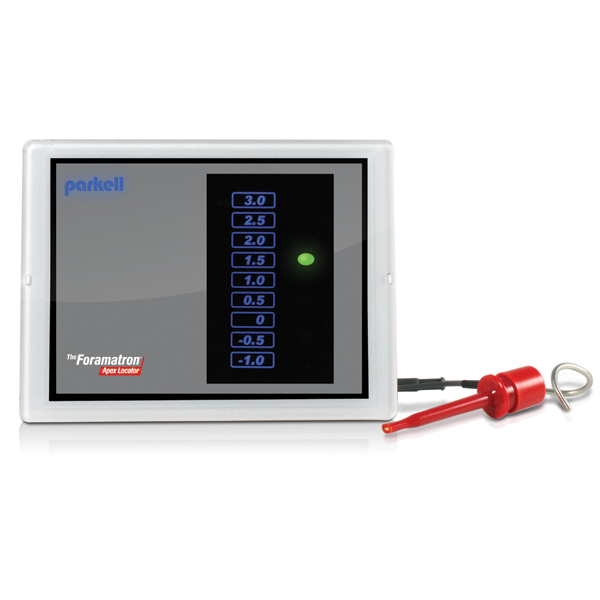

Figure 7 | Foramatron®
