Full-Mouth Rehabilitation: A Staged Approach to Treating the Worn Dentition
When presented with a full-mouth rehabilitation of a worn dentition, a staged approach to restoration offers the clinician the chance to assess how a patient will respond to occlusal and esthetic changes. In this case involving an older patient who was concerned about wear on his teeth, a systematic, step-by-step process was employed to develop a comprehensive and specific treatment plan that would achieve all treatment goals. The patient’s severely worn dentition was restored, and a stable, comfortable occlusion was achieved, with care taken to minimize biomechanical risk.
Full-mouth rehabilitation of the worn dentition presents the clinician with many challenges and potential pitfalls. A systematic approach to diagnosis, treatment planning, and risk management is crucial for a predictable outcome. A staged approach to restoring the worn dentition provides the clinician opportunity to evaluate how a patient will respond to occlusal and esthetic changes. In this case, a 61-year-old retired engineer presented with concerns about the wear on his teeth (Figure 1). The case demonstrates the benefits of a staged approach and describes the successful alteration of the initial treatment plan when changes were necessary to better manage risk.
Medical and Dental History
The patient reported mild hypertension, which was controlled with medication. He had an acoustic neuroma removed in 1996, which damaged his facial nerve and resulted in right-side facial paralysis. His mild systemic disease and age placed him in American Society of Anesthesiologists (ASA) category 2.
The patient reported comprehensive orthodontic therapy, including orthognathic surgery to advance his mandible in his late thirties. He had a 30-year relationship with his previous dentist and reported receiving regular preventive dental care during that time. He was not aware of any problems other than the wear on his teeth, which he felt had progressed over the previous 5 years.
Diagnosis, Risk Assessment, and Prognosis
Periodontal: The examination revealed probing depths of 4 mm to 8 mm on the lingual surfaces of posterior teeth with areas of bleeding. Facial probing depths were primarily 2 mm to 3 mm, with a few 4-mm measurements and an isolated 5-mm pocket on the distobuccal of tooth No. 31. No gingival recession was noted. In fact, the patient’s free gingival margins were equal with or coronal to the cementoenamel junction (CEJ). The patient exhibited thick, buttressing alveolar bone. Moderate horizontal bone loss with pseudo- and real periodontal pocketing was present. He was diagnosed American Academy of Periodontology (AAP) type III, moderate periodontitis.
Biomechanical: Caries risk assessment was evaluated using a self-reported questionnaire for risk factors, an adenosine triphosphate (ATP) bioluminescence test, radiographs, and a clinical examination.1 The patient had no cavities within the past 3 years, and no carious lesions were currently present. The ATP bioluminescence test was low (less than 1,500 RLU). His caries risk assessment was determined to be low. Defective restorations were present on teeth Nos. 14, 18, and 31. Many questionable restorations were noted, including the fixed partial denture (FPD) Nos. 7 through 9 (Figure 2). All molars were structurally compromised. While the caries risk was low, the patient’s overall biomechanical risk was increased due to the number of restored teeth, structurally compromised teeth, and failing restorations.
Functional: Since the patient had areas of severe wear that he desired to have restored and an actively changing occlusion, a proper functional diagnosis was imperative. The patient denied any muscle soreness or temporomandibular joint (TMJ) symptoms. His maximum opening was within normal limits at 46 mm, and there was no deviation on opening. Joint load and immobilization tests were negative. A cephalometric radiograph and analysis showed a Class I skeletal relationship. Severe attrition (> 2 mm) was present on teeth Nos. 6, 11, and 22 through 27 (Figure 3 and Figure 4). It is important to note that the lower incisors, despite being worn nearly to the gingiva, contacted the opposing teeth in maximum intercuspal position (MIP). This indicated that the compensatory eruption of the teeth was keeping pace with the rate of wear.
Nearly all other teeth exhibited moderate attrition. Posterior tooth wear was not consistent with sleep bruxism because cusp tips were preserved and secondary occlusal anatomy was present. The patient was diagnosed with occlusal dysfunction.
Dentofacial: The patient’s right-side facial paralysis made esthetic evaluation more challenging. Initially, it was presumed the patient had low lip dynamics; however, after interacting with the patient over several visits it became evident that his smile was guarded. Even though the patient had an unesthetic anterior FPD, he said it did not bother him. In the author’s experience, oftentimes patients, especially men, are not aware they are guarding their smile and may not readily admit to wanting to correct esthetic challenges. The patient had low esthetic demands, and the author felt confident in being able to exceed his esthetic expectations.
The goals of treatment were as follows:
Restore worn teeth and manage functional risk by establishing an MIP that was stable, with bilateral, simultaneous, equal intensity contacts.2 Eliminate periodontal pockets, and position the gingiva in the proper position.
Manage the risk of fracture for structurally compromised teeth by restoring with cohesively and adhesively retained indirect restorations.
Reduce biomechanical treatment risk by using enamel-supported, adhesively retained restorations where possible.
Enhance esthetics and provide the patient with a natural-looking smile.

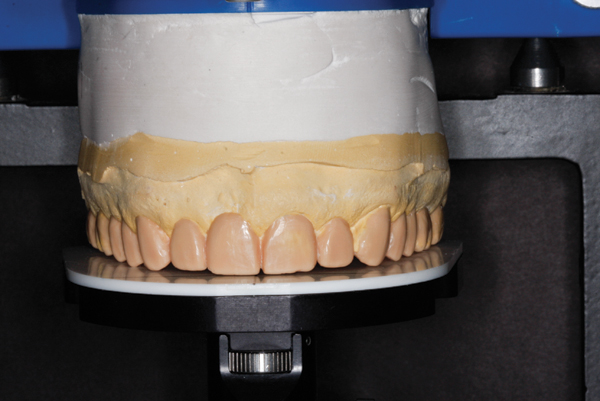

All teeth were planned for restorative correction due to the severity of wear on the anterior teeth and the need to increase the occlusal vertical dimension (OVD.)3 To minimize the biomechanical risk of tooth preparation, adhesively retained, enamel-supported restorations were planned wherever possible. Functional analysis was performed using a Kois deprogrammer.4 The patient was challenging to deprogram because it took 3 months to get a repeatable position on the deprogrammer’s platform. The patient did not exhibit any side-to-side wear on the deprogrammer platform during this time, thereby confirming the diagnosis of occlusal dysfunction rather than sleep bruxism.

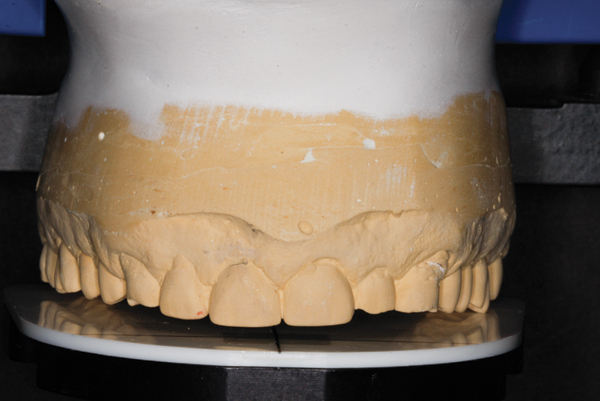

Bite records and a Kois LazrTrak (Kois Center, www.koiscenter.com) facebow record were taken and mounted using a Panadent articulator (Panadent, www.panadent.com) (Figure 5). The Kois Management Considerations: 10-Step Approach (Kois Center), a systematic tool for managing prosthetics utilizing a straightforward method of identifying, assessing, and managing risk, was used to develop a comprehensive and specific treatment plan that would achieve all treatment goals. Crown lengthening was performed on the casts, and a diagnostic wax-up was then completed (Figure 6). A preoperative stent fabricated from the wax-up would then provide guidance for both the periodontal surgery and chairside transitional bonding.
Periodontal pocket reduction surgery was performed for all posterior teeth. This provided more favorable clinical crown heights for the necessary restorative treatment. Teeth Nos. 6 through 11 and 23 through 26 had esthetic crown-lengthening surgery to expose the entire anatomical crowns. Scaling and root planing was also performed during the periodontal surgery appointments. After the completion of initial therapy and surgery, the patient was placed on a 3-month maintenance schedule.
After a 3-month healing period, the patient was appointed for maxillary transitional bonding and a provisional FPD on teeth Nos. 7 through 9. Once anesthesia was administered, the retainers were sectioned and the FPD was removed.
At this time it was noted that tooth No. 7 had previously been over-prepared and, thus, the tooth had greater structural compromise than expected. Replacing the FPD now seemed like a less favorable option, and implant placement in site No. 8 with individual crowns on teeth Nos. 7, 8, and 9 was discussed. Given the greater biomechanical risk of using tooth No. 7 as a fixed bridge retainer, it was determined that future complications could be more easily prevented and managed with an implant and individual crowns. The patient elected to delay his decision about an implant until after the upper arch transitional bonding and provisional FPD were fabricated to allow evaluation of the occlusal scheme and esthetics.
After the chairside discussion about site No. 8, the transitional bonding was placed. Retentive grooves were cut in the occlusal surfaces of amalgam restorations and crowns. A clear silicone matrix had been made from the diagnostic wax-up. A bis-glycidyl methacrylate (bis-GMA) provisional FPD Nos. 7 through 9 was made from this matrix. The maxillary teeth were etched with 35% phosphoric acid, and a dental adhesive (OptiBond™ FL, Kerr Corp., www.kerrdental.com) was applied and light-cured. The clear silicone matrix was filled with heavy- and light-viscosity composite (RSVP™, Cosmedent, Inc., www.cosmedent.com) and seated over the teeth. The composite was light-cured through the matrix. Excess composite was removed and gingival embrasures opened with a #12 blade, fine diamond, and finishing burs. The mandibular arch was treated in a similar manner at a subsequent appointment the same week (Figure 7).
A second Kois deprogrammer was fabricated from alginate impressions taken after the transitional bonding was completed. Because the initial deprogramming was challenging and took longer than usual, a second deprogrammer was used to verify the occlusal position and equilibrate the transitional bonding.
After occlusal equilibration, the patient was seen for follow-up appointments and minor adjustments. He reported that his bite felt comfortable, and no chips or fractures were noted on the composite. He functioned in the transitional bonding for more than 2 months before proceeding with definitive restorations.5
Since care had been taken in establishing a stable occlusal reference point before beginning treatment and the patient had functioned well with the restorative prototypes, the teeth could now be prepped segmentally: full arch, quadrant, or even one or two teeth at a time. This approach gives the dentist greater flexibility and predictability than if all the teeth are prepared at once without “test driving” the occlusion and esthetics with transitional bonding.6 Maintaining solid posterior occlusal stops was critical during treatment since the patient’s OVD had been increased and length added to the anterior teeth. The decision was made to prepare all the molars on the left side first (teeth Nos. 14, 15, 18, and 19) and cement these restorations, and then prepare the molars on the right side (teeth Nos. 2, 3, 30, and 31). The second molars received full gold crowns to reduce the risk of chipping porcelain. After the molars were restored, the patient decided that he was ready to proceed with implant placement in site No. 8. A 4-mm x 13-mm implant (Astra Tech OsseoSpeed™, DENTSPLY Implants, www.dentsplyimplants.com) was placed, and the provisional FPD was adjusted to provide temporization during the healing period.7
Initially, since a metal ceramic FPD was planned for teeth Nos. 7 through 9, porcelain-fused-to-metal (PFM) crowns were planned for all porcelain-faced, cohesively retained restorations to maximize the esthetic result by using the same type of veneering porcelain. Teeth Nos. 3, 14, and 19 had been restored with PFM crowns before the patient elected to have an implant placed in site No.8. Once the FPD was eliminated from the treatment plan, lithium disilicate (e.max®, Ivoclar Vivadent, www.ivoclarvivadent.com) became the material of choice; monolithic lithium disilicate was selected to restore the remaining posterior teeth,8 and lithium-disilicate cores with layered e.max porcelain were to be used for teeth Nos. 6 through 11 and 22 through 27 (Figure 8 and Figure 9). The implant replacing tooth No. 8 would be restored with a custom-shaded zirconia abutment (Atlantis™, DENTSPLY Implants) and a layered lithium-disilicate crown.
The remaining maxillary teeth (Nos. 4 through 13) were prepared for lithium-disilicate (e.max) restorations. The impression for the No. 8 implant was made at this time also. Lastly, mandibular teeth Nos. 20 through 29 were prepared. Tooth No. 20 was unrestored and only required a direct composite to bring the tooth into occlusion. Notably, teeth Nos. 21 through 30 were all enamel-supported adhesively retained e.max restorations. The selection of conservative restorations limited the biomechanical risk to the teeth by reducing the amount of tooth preparation required. The teeth were prepared with the transitional bonding in place, allowing for minimal occlusal and, at times, facial reduction for many teeth.9,10 The case was prepared in four segments, and the final restorations for each segment were cemented before preparing the next section.
At the cementation appointments, all teeth were cleaned with 27-micron aluminum oxide at 40 psi (PrepStart™, Danville Materials, www.danvillematerials.com ). Ceramic primer (RelyX™, 3M ESPE, www.3MESPE.com ) was applied. All crowns were cemented with RelyX™ Unicem 2 (3M ESPE), except the No. 8 implant crown, which was cemented with a resin-reinforced glass ionomer (GC Fuji PLUS®, GC America Inc., www.gcamerica.com). E.max onlays (Nos. 20, 28, 29, and 30) were cemented with a dual-cure resin cement (RelyX™ Ultimate, 3M ESPE), and e.max veneers (Nos. 22 through 27) were cemented with a light-cure resin cement (RelyX™ Veneer, 3M ESPE).

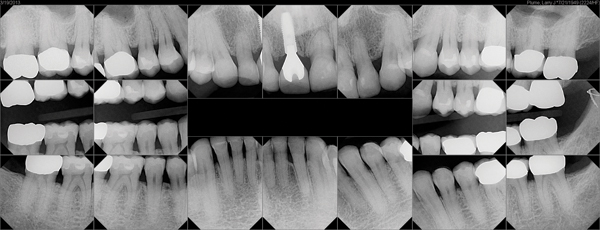

The patient was appointed for postoperative photographs and radiographs (Figure 10 through Figure 13). For added protection, a hard acrylic splint was fabricated for the patient to wear while sleeping.
This case illustrates a method to systematically diagnose, plan, and stage treatment to restore a patient’s worn dentition. The patient’s partial facial paralysis made esthetic evaluation more challenging. The patient’s repose position was the guiding determinant of anterior tooth length.11
The patient was extremely pleased with the final result and exhibited a full smile with considerably more tooth display than preoperatively (Figure 14). As a result of his improved esthetics, he says he has taken an increased interest in his oral hygiene, showing a marked improvement. The patient’s severely worn dentition was restored, a stable, comfortable occlusion was provided, and care was taken to minimize biomechanical risk.
The author would like to thank and recognize Roberta Shaklee, DDS, MS for periodontal surgery; Tony Kardelis, DDS, MS for implant surgery; and Angelika Oeckl, owner of Subrisi Smile Technology for outstanding laboratory support.
1. Young DA, Kutsch VK, Whitehouse J. A clinician’s guide to CAMBRA: a simple approach. Compend Contin Educ Dent. 2009;30(2):92-98.
2. Kois JC, Phillips KM. Occlusal vertical dimension: alteration concerns. Compend Contin Educ Dent. 1997;18(12):1169-1177.
3. Kois JC. New challenges in treatment planning: incorporating the fundamentals of patient risk management. Part 2. Journal of Cosmetic Dentistry. 2011;27(1):110-123.
4. Jayne D. A deprogrammer for occlusal analysis and simplified accurate case mounting. Journal of Cosmetic Dentistry. 2006;21(4):96-102.
5. Bakeman EM, Kois JC. The myth of anterior guidance: 10 steps in designing proper clearance for functional pathways. Journal of Cosmetic Dentistry. 2012;28(3):56-62.
6. Bynum JH. Clinical case report: Testing occlusal management, previewing anterior esthetics, and staging rehabilitation with direct composite and Kois deprogrammer. Compend Contin Educ Dent. 2010;31(4):298-306.
7. Kois JC, Kan JY. Predictable peri-implant gingival aesthetics: surgical and prosthodontic rationales. Pract Proced Aesthet Dent. 2001;13(9):691-698.
8. Valenti M, Valenti A. Retrospective survival analysis of 261 lithium disilicate crowns in a private general practice. Quintessence Int. 2009;40(7):573-579.
9. Magne, P, Beleser U. Novel porcelain laminate preparation approach driven by a diagnostic mock-up. J Esthet Restor Dent. 2004;16(1):7-16.
10. Palmer KM. Use of additive dentistry decreases risk by minimizing reduction. Compend Contin Educ Dent. 2012;33(5):346-352.
11. Misch CE. Guidelines for maxillary incisal edge position—a pilot study: the key is the canine. J Prosthodont. 2008;17(2):130-134.
About the Author
Kenneth LeVos, DDS
Private Practice, Evergreen, Colorado
