A Transnasal Implant Technique

The “Vanderlim technique” presents an alternative to the quad zygoma technique in cases involving severely atrophic maxillae

Vanderlim Branco Camargo, DDS | João Ricardo Almeida Grossi, DDS, MSD | Eduardo Meurer, DDS, MSD Fabio Andretti, DDS, MSc, PhD | Daniel Baptista, DDS, MSc, PhD | Cesar Augusto Montanari Dalmolin, DDS, MSD

Today, there are several techniques available to help dentists avoid placing bone grafts in implant patients who present with severely atrophic maxillae, and some of these techniques allow the patients to be treated with immediate loading protocols.1 Among these techniques is the quad zygoma procedure, which involves the delivery of a full-arch prosthesis onto four zygomatic implants when there is limited bone availability in the edentulous maxilla.2 Although this technique improves the function and esthetics of patients and has demonstrated high success rates, it requires patients to have enough bone in the region of the body of the zygoma to place the implants.3-5 In addition, the anatomical pillars of the face, such as the orbit, nasal fossa, oral cavity, and paranasal sinuses, must be considered because they distribute the cranial forces.6

The placement of zygomatic implants demands a highly skilled surgeon, and depending on the bone available in the body of the zygoma, the variation in the position of the implants can increase the prosthetic compensation and make the prosthetic rehabilitation difficult.7,8 Placing the second zygomatic implant on either the right or left side (the most superior one) is frequently difficult due to the limited width of the zygoma.7 Another issue is that the infraorbital foramen may be too close to the path of the second implant. Sometimes, this implant is well exteriorized, exhibiting several exposed threads due to the concavity of the anterior wall of the maxilla, which can lead to soft-tissue complications. In recent years, research has recommended rehabilitating zygomatic implant patients without grafts and with immediate loading protocols.1,9

Transnasal Implant Placement

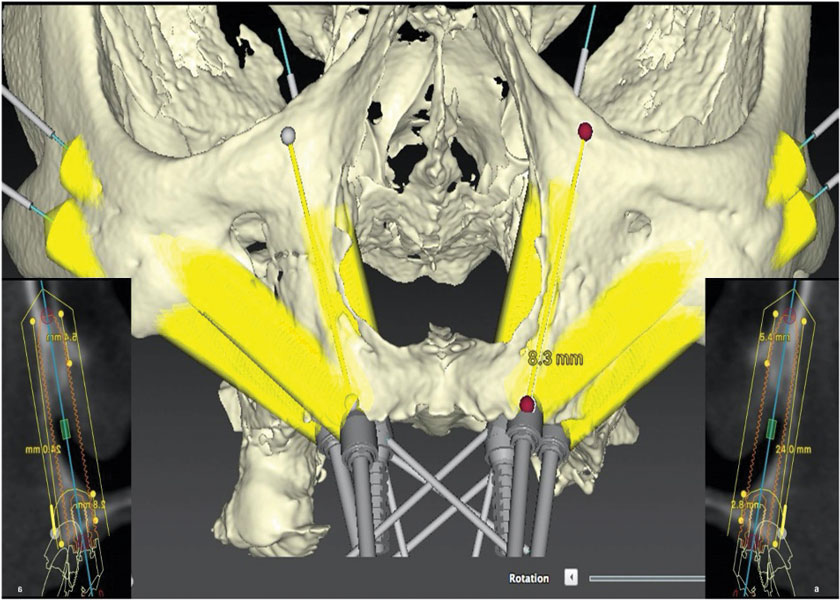

As an alternative to the quad zygoma technique, the transnasal implant technique was developed, in which implants are inserted into the basal bone of the maxilla, across the nasal cavity tangent to the distal wall, and anchored apically in the frontal process of the maxilla (Figure 1 and Figure 2).4,10,11 Using the nasal cavity walls as anchorage for implants12 increases bone availability in the anterior region of the maxilla, allowing for the installation of an anterior extra-long conventional implant accompanied by a posterior zygomatic implant (Figure 3). As long as the anatomy of the region is respected and the final positioning of the transnasal implants is appropriately planned, this technique has been shown to achieve a high success rate.11

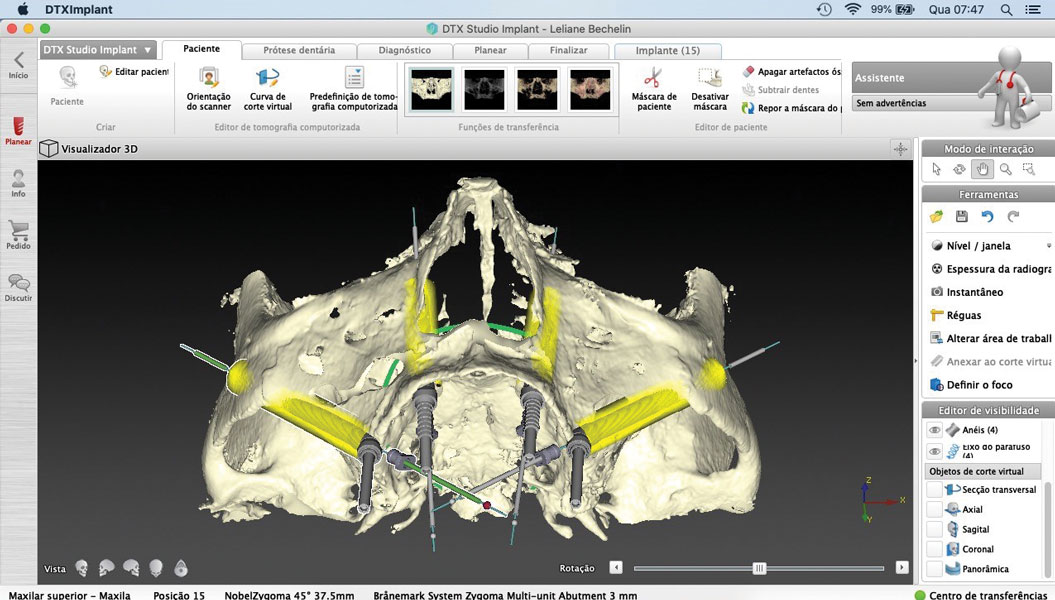

When virtually planning transnasal implants with cone-beam computed tomography (CBCT) data and CAD software, a minimum bone height of 3 mm is required between the maxillary edge and the nasal cavity. A bone height of less than this may make immediate loading impossible. In addition, at least 3 mm of implant anchorage is required in the frontonasal process of the maxilla, which allows the extra-long implants to be anchored in good-quality bone.


One of the alternatives to grafting for the restoration of severely resorbed maxillae is the installation of implants in the anatomical pillars of the face.13 The anatomical pillars of the face comprise a series of dense, bony areas that act as a protective frame for the different craniofacial cavities, including the orbits, nasal fossae, paranasal sinuses, and the oral cavity.6 The choice of region is made according to the amount of bone available for the best positioning of the implant. Clinicians should always seek to combine their knowledge of the anatomy of the operated area with a virtual simulation of the case and prototypes so that complications rarely occur14 and so that they can prepare several strategies for successful resolution of the case prior to the surgery.

Despite the high success rates of all-on-4 zygoma techniques reported in the literature, the use of four zygomatic implants requires greater availability of bone in the body of the zygoma, which often makes the installation of four implants challenging or sometimes impossible—even for professionals with more experience.15,16 Insufficient bone volume or density for anchoring the apex of a zygomatic implant may result in insufficient initial stability. The position of the infraorbital foramen, which may be in the path of the second zygomatic implant, can also complicate placement.7 In patients with a large concavity of the anterior maxillary wall, a large part of the implant body, or even the entire implant platform, may be without bone contact and only covered by soft tissue, especially in cases with little keratinized gingiva.17

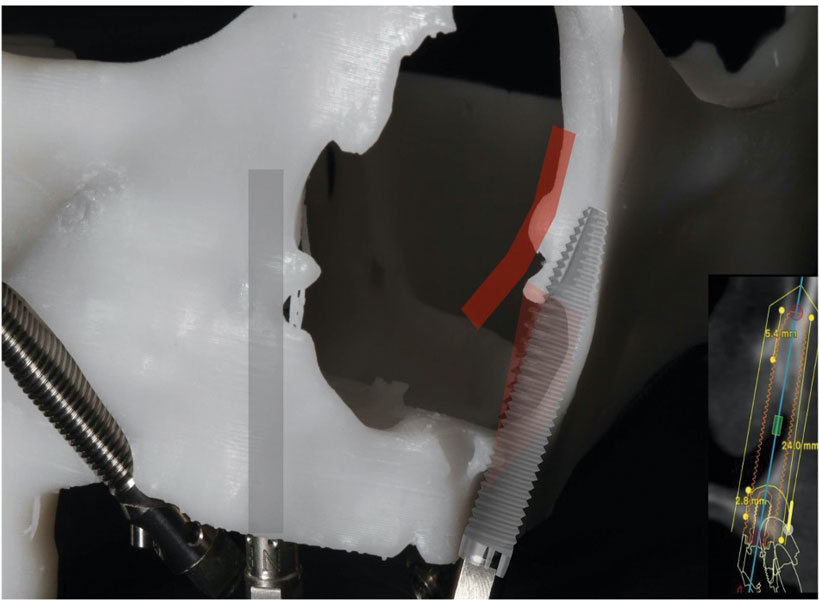

The height of the alveolar ridge, the shape of the nasal cavity, and the availability of implant anchorage in the frontal process of the maxilla should be evaluated to determine if the transnasal technique is indicated, and the use of a prototype permits these criteria to be observed with greater security (Figure 4).18 The frontomaxillary pillar is found in a region where dense bone normally exists, which allows the placement of long implants with parasinusal angulation.19 Using these bone pillars as anchorage for dental implants transfixing the nasal cavity18 increases bone availability in the anterior region of the maxilla.

Patients with extensive nasal cavities that have very distal lateral limits are not indicated for the transnasal technique because the implant may not reach the distal bone wall, making bone reconstruction unfeasible and possibly interfering with respiratory function. In addition, detailed anatomical knowledge of this region is necessary due to the proximity of the internal maxillary artery in the frontozygomatic process, the nasolacrimal duct, and the posterior palatine artery.20


In cases of highly reabsorbed maxillae, the transnasal technique is a viable alternative to the quad zygoma technique when, due to the reduced dimensions of the zygomatic process, it better meets the surgical and prosthetic requirements and will reduce the risk of complications related to the bone, peri-implant soft-tissue, and prosthesis. The transnasal technique permits long implants to be anchored in good-quality bone, even in situations where little bone is available in the anterior alveolar ridge, and facilitates the realization of immediate loading in complex full-arch cases. It can be applied to avoid performing bilateral sinus-lift bone grafts or block grafts as well as the bilateral double zygoma or quad zygoma technique. The transnasal technique can also be a viable option to replace or avoid the installation of a second zygomatic implant bilaterally because it can be used in combination with other bone anchorage solutions, such as the pterygoid implant. Although the initial research indicates that the transnasal technique can provide successful results in cases involving severely atrophic maxillae, further research with longer follow-up periods is needed to better assess the longevity of the treatment.

About the Authors

Vanderlim Branco Camargo, DDS
Director, Implant Specialist
CIIPO Network of Dental Clinics
Florianópolis, Santa Catarina, Brazil

João Ricardo Almeida Grossi, MSD, DDS
Professor, Implant Dentistry Residency
Brazilian Association of Dentistry
Guarapuava, Paraná, Brazil

Private Practice
Curitiba, Paraná, Brazil

Eduardo Meurer, DDS, MSD
Department Head
Oral and Maxillofacial Surgery Service
Hospital Regional de São José Dr. Homero de Miranda Gomes
São José, Santa Catarina, Brazil

Fabio Andretti, DDS, MSc, PhD
Assistant Professor
Department of Prosthodontics
School of Dental Medicine
Tufts University
Boston, Massachusetts

Daniel Baptista, DDS, MSc, PhD
UniSul Universidade
Palhoça, Santa Catarina, Brazil

Private Practice
Florianópolis, Santa Catarina, Brazil

Cesar Augusto Montanari Dalmolin, DDS, MSD
Private Practice
Criciuma, Santa Catarina, Brazil


1. Alzoubi F, Bedrossian E, Wong A, et al. Outcomes assessment of treating completely edentulous patients with a fixed implant-supported profile prosthesis utilizing a graftless approach. Part 2: patient-related outcomes. Int J Oral Maxillofac Implants. 2017;32(5):1080-1085.

2. Maló P, de Araújo Nobre M, Lopes A, et al. Extramaxillary surgical technique: clinical outcome of 352 patients rehabilitated with 747 zygomatic implants with a follow-up between 6 months and 7 years. Clin Implant Dent Relat Res. 2015;17(Suppl 1):e153-e162.

3. Aparicio C. A proposed classification for zygomatic implant patient based on the zygoma anatomy guided approach (ZAGA): a cross-sectional survey. Eur J Oral Implantol. 2011;4(3):269-275.

4. Bedrossian E, Brånemark PI. Systematic treatment planning protocol for patients with maxillofacial defects: avoiding living a life of seclusion and depression. Atlas Oral Maxillofac Surg Clin North Am. 2012;20(1):135-158.

5. Aparicio C, Manresa C, Francisco K, et al. Zygomatic implants: indications, techniques and outcomes, and the zygomatic success code. Periodontol 2000. 2014;66(1):41-58.

6. Couly G. La statique osseuse de la face: les piliers osseux ptérygo-sphéno-frontaux équivalents biomécaniques de la mandibule [Bone statics of the face: the frontal-sphenoid-pterygoid bone pillars as biomechanic equivalents of the mandible]. Rev Stomatol Chir Maxillofac. 1975;76(8):607-619.

7. Davo R, David L. Quad zygoma: technique and realities. Oral Maxillofac Surg Clin North Am. 2019;31(2):285-297.

8. Aboul-Hosn Centenero S, Lázaro A, Giralt-Hernando M, Hernández-Alfaro F. Zygoma quad compared with 2 zygomatic implants: a systematic review and meta-analysis. Implant Dent. 2018;27(2):246-253.

9. Alzoubi F, Bedrossian E, Wong A, et al. Outcomes assessment of treating completely edentulous patients with a fixed implant-supported profile prosthesis utilizing a graftless approach. Part 1: clinically related outcomes. Int J Oral Maxillofac Implants. 2017;32(4):897-903.

10. Bedrossian E, Sullivan RM, Fortin Y, et al. Fixed-prosthetic implant restoration of the edentulous maxilla: a systematic pretreatment evaluation method. J Oral Maxillofac Surg. 2008;66(1):112-122.

11. Camargo VB, Baptista D, Grossi JRA. Transnasal implants: the Vanderlim technique as an alternative to the quad zygoma technique in completely atrophic maxillae: a 12-case series report under immediate loading and 2-to-26-month follow-up. Implant News Reab Oral. 2021;6(5):674-683.

12. Nicoli G, Piva S, Ferraris P, et al. Extra-long nasal wall-directed dental implants for maxillary complete arch immediate function: a pilot study. Oral Maxillofac Surg Clin North Am. 2019;31(2):349-356.

13. Manson PN, Hoopes JE, Su CT. Structural pillars of the facial skeleton: an approach to the management of Le Fort fractures. Plast Reconstr Surg. 1980;66(1):54-62.

14. Ernoult C, Bouletreau P, Meyer C, Aubry S, Breton P, Bachelet JT. Reconstruction assistée par l'impression 3D en chirurgie maxillofaciale [Reconstruction assisted by 3D printing in maxillofacial surgery]. Rev Stomatol Chir Maxillofac Chir Orale. 2015;116(2):95-102.

15. Maló P, de Araújo Nobre M, Lopes A, et al. The All-on-4 treatment concept for the rehabilitation of the completely edentulous mandible: a longitudinal study with 10 to 18 years of follow-up. Clin Implant Dent Relat Res. 2019;21(4):565-577.

16. Kuabara MR, Ferreira EJ, Gulinelli JL, Paz LG. Rehabilitation with zygomatic implants: a treatment option for the atrophic edentulous maxilla--9-year follow-up. Quintessence Int. 2010;41(1):9-12.

17. Aparicio C, Ouazzani W, Aparicio A, et al. Immediate/early loading of zygomatic implants: clinical experiences after 2 to 5 years of follow-up. Clin Implant Dent Relat Res. 2010;12(Suppl 1):e77-e82.

18. Sherman SL, Kadioglu O, Currier GF, et al. Accuracy of digital light processing printing of 3-dimensional dental models. Am J Orthod Dentofacial Orthop. 2020;157(3):422-428.

19. Davó R, Pons O. 5-year outcome of cross-arch prostheses supported by four immediately loaded zygomatic implants: a prospective case series. Eur J Oral Implantol. 2015;8(2):169-174.

20. Bedrossian E, Bedrossian EA. Systematic treatment planning protocol of the edentulous maxilla for an implant-supported fixed prosthesis. Compend Contin Educ Dent. 2019;40(1):20-25; quiz 26.
